시멘트 플랜트 산업을위한 사일로 시스템 솔루션

시멘트 플랜트 산업을위한 사일로 시스템 솔루션

    사일로 크기 : 100-20000m3, 저장 재료 : 시멘트, 석회암, 보크 사이트, 사암, 철광석, 석고, 플라이 애쉬, 미네랄 재 분말, 원료 석탄 및 기타 첨가제, 사일로 유형 적용 가능 : 볼트 사일로, 나선형 접힌 사일로, 용접 사일로 , 보조 시스템 : 버킷 엘리베이터, 집진기 시스템, 공기 슈트 시스템, 사일로 폭기 시스템, 트럭 로더, 가방 포장 시스템 등

소개

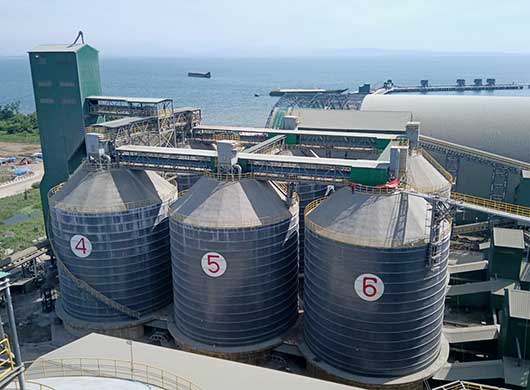

SRON Steel Silo System in Cement Plant Industry

Used in the cement plant industry for the storage of different types of raw materials or finished products, steel silos are important participating equipment in cement plants. The silo size/height design is adaptable to the flow requirements of the whole cement plant, the silo unloading fluidization system must be well laid out, and the whole system design and equipment must withstand the high workload requirements in the cement plant.

  • Reasonable connection to upstream and downstream equipment of cement plant
  • It makes the whole production process of cement plant more smooth and rational.
  • Small silo system layout, space saving
  • Faster construction time and cost savings than concrete silos
  • quick turnaround
  • Flexible features linked to truck loading and bag packing

방법

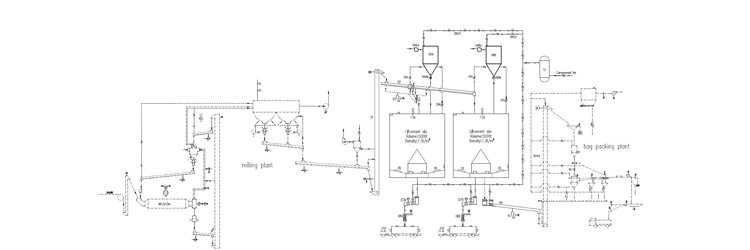

Usually the whole system includes: cement feeding bucket elevator, dust collector system, silo aeration system, cement unloading system, bulk truck loading, bag packing system, bag palletiser and bag truck loading system.

Cement Silo System

선택을위한 경제적 인 사일로 모델

Single Silo Volume Silo Model Choice Advantages
100-800m3 Bolted Silo Easy Installation, Cost Saving
500-7000m3 (Not for Hot Clinker) Spiral Folded Silo Germany silo technology Good anti-corrosion performance as the materials for silo is by hot galvanized steel plate High Sealing Performance Strong silo solidity Short Construction Time Cost Saving
7000-20000m3 (Not for Hot Clinker) Welded Silo Applicable for various types of materials Big volume of single silo High performance of sealing

Core supporting equipment


  • Bucket Elevator

  • Cement Silo Aeration System

    Silo Aeration System

  • Cement Silo Truck Loading System

    Truck Loading System

  • Bag Packing System

    Bag Packing System
