Spiral Silo Introduction

The spiral silo is profiled by a special silo profile machine. The silo structure is a mechanically integrated whole without holes, bolts and screws.

  • Substrate: strong anti-corrosion performance by hot galvanized steel sheet 275g/m2, 340g/m3 or 600g/m2, no paint required for life.
  • Application: Ideal silo for storage of cement, fly ash, mineral powder, water and oil for perfect sealing performance.
  • Diameter range: 4m-25m
  • Silo cylinder height range: 6m-25m

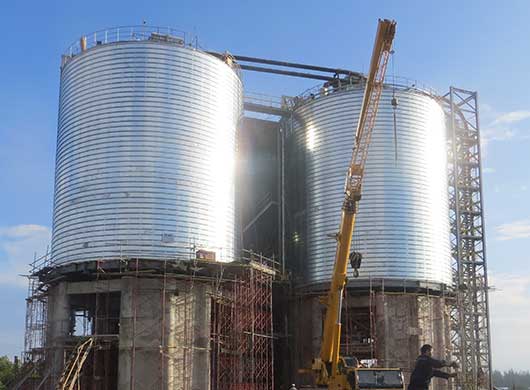

Spiral Cement Steel Silo


풍모

spiral silo function

  • Integral strength and long life

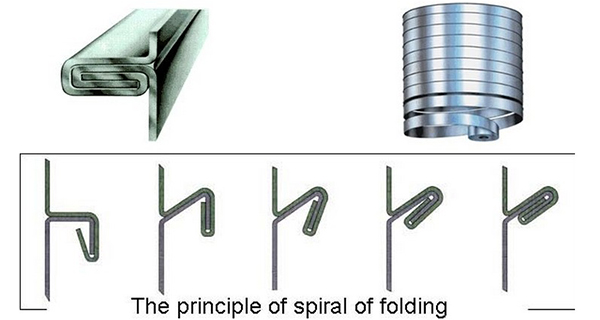

    During construction, coil sheets of a certain width are fed to a profiling station to create a limited circular spiral protruding strip 30-40 mm wide around the silo body. The thickness of the strip is 5 times thicker than the basic coil sheet, strengthening the silo body in load-bearing capacity and strengthening the silo of the structure.
  • Excellent airtightness and wide application
    The spiral folded edge is a 5-layer spiral steel plate with sealing rubber embedded in the spiral crimping seam to ensure good silo tightness. The spiral folded silo can store granular powder materials, and meets the requirements of fumigation and pesticide. It can also store liquid materials, and for two kinds of different materials, the silo construction equipment can realize double-layer bending.
  • Short construction cycle and low cost
    The construction of the silo is very fast and the return on investment is very fast because the silo is manufactured fully automatically by special equipment operating at a speed of 300m/h.
  • Space saving and light weight
    Silo heights and diameters are optional over a wide range. The distance between the two silos can be minimized to 500mm, making the most of the available space and reducing the footprint. In addition, the silo weighs only 1/6 of the same capacity concrete silo, which greatly reduces the basic structural load and cost.

매개 변수

Spiral Silo Parameters

Height (m) 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
Diameter (m) Volume (m3)
4 75 88 100 113 126 138 151 163 176 188 201
5 118 137 157 177 196 216 236 255 275 295 314 334 353
6     226 254 283 311 339 367 396 424 452 480 509 537 565
7         385 423 462 500 539 577 615 654 693 731 770
8         502 553 603 653 703 754 804 854 904 955 1005 1056 1106
9             763 827 890 954 1017 1081 1145 1208 1272 1336 1400
10             942 1021 1099 1178 1256 1335 1413 1492 1570 1649 1728
11             1140 1235 1330 1425 1520 1615 1710 1805 1900 1996 2091
12             1356 1470 1583 1696 1808 1922 2035 2148 2261 2374 2487 2601 2714 2827
13             1592 1725 1857 1990 2122 2255 2388 2521 2653 2786 2919 3053 3186 3318
14                   2308 2462 2626 2769 2923 3077 3231 3385 3559 3695 3848
15                   2649 2826 3003 3179 3356 3533 3709 3886 4062 4241 4418
16                         3617 3818 4019 4220 4421 4624 4825 5027
17                         4084 4310 4537 4764 4991
18                         4578 4832 5087 5341 5595
19                         5101 5384 5668 5951 6234
20                         5652 5966 6280 6594 6908
22                         6842 7223 7603 7982 8362
24                         8143 8595 9048
25                         8835 9326 9817
